Description

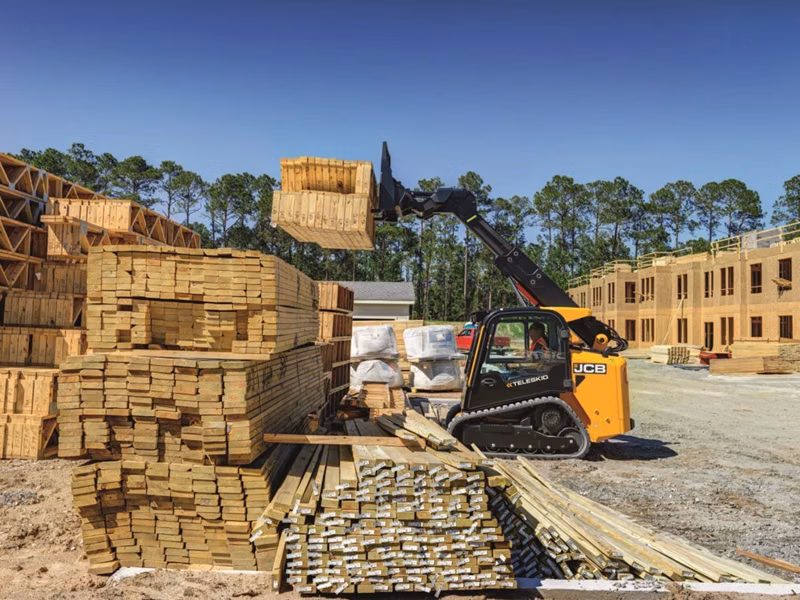

The 2TS-7T is the world’s first and only small-platform compact track loader with a telescoping boom. This boom allows the operator to lift higher, reach further and dig deeper than any competing machine. The telescopic boom allows the 2TS-7T to achieve its 11 feet 10 inches of lift height. This substantial height provides the operator the opportunity to dump material and stack pallets or bales higher than ever before – freeing up valuable ground space. With a full 7 feet of forward reach, 60% more forward reach than conventional compact track loaders, operators now can load both sides of a flatbed trailer from one side. This large reach helps reach over fences and other obstacles to place loads.
Specifications
Manufacturer
JCB
Model
2TS-7T
Year
2026
Category
Skid Steers
Subcategory
Teleskid
Engine Model
KDI 2504 TCR
Manufacturer
Kohler
Cylinders
4
Aspiration
Turbo
Cooling
Water
Displacement
2.48 L [151 cu in]
Rated Speed
2600 rpm
Hydraulic Power
18.7 kW [25 hp]
Hydraulic Power - Option
24.7 kW [33 hp]
Pump Flow
70 L/min [18.6 gal/min]
Pump Flow - Option
110 L/min [29.4 gal/min]
System Pressure
230 bar [3335 psi]
System Pressure - Option
230 bar [3335 psi]
Hydraulic System
48 L [12.6 gal]
Track Shoe Width
320 mm [12.6 in]
Length - No Bucket
2800 mm [110 in]
Length - With Bucket
3600 mm [142 in]
Width - No Bucket
1600 mm [63 in]
Width - With Bucket
1800 mm [71 in]
Height - Top Of Cab
2000 mm [79 in]
Ground Clearance
230 mm [9 in]
Track Length On Ground
1900 mm [75 in]
Track Gauge
1550 mm [59.3 in]
Height To Hinge Pin
3100 mm [122 in]
Max Dump Height
2300 mm [90 in]
Max Dump Height Reach
620 mm [24 in]
Lift Height
2800 mm [112 in]
Turning Radius - Rear Corner
1600 mm [64 in]
Turning Radius - Bucket Corner
2200 mm [88 in]
Rear Departure Angle
28°
Dump Angle
36°
Ground Level Rollback
31°
Emissions
Diesel T4 SIIB
Features
Retracted Boom
Undercarriage Type
Hi Mount Drive Motor
Lift Geometry
Vertical & Radial
Access
Side Entry - Left
Structure
ROPS / FOPS
ROPS Rating Standard
ISO 3471
FOPS Rating Standard
ISO 3449
Cab Type
Swing Up - Meshed
Gross Rating Standard
SAE J1995
Gross Output
55 kW [74 hp]
Torque Rated Speed
1200 rpm
Torque
265 Nm [195 lbf·ft]
Transmission Type
Hydrostatic
Motors
2
Drive Method
Sprocket
Steering Type
Track
Track Rollers
4
Track Type
Rubber
Fuel Tank
98 L [25.9 gal]
Engine Oil
11.5 L [3 gal]
Cooling System
10.3 L [2.7 gal]
Heaped Capacity
0.56 m³ [20 ft³]
Tipping Load
2784 kg [6138 lb]
Operating Capacity
951 kg [2096 lb]
Speed - Maximum
7.2 km/h [4.5 mph]
Breakout - Lift
18.36 kN [4127 lbf]
Breakout - Bucket
28.93 kN [6503 lbf]
Controls - Loader
Joystick
Controls - Steering
Joystick
Operating Weight
4497 kg [9914 lb]
