Description

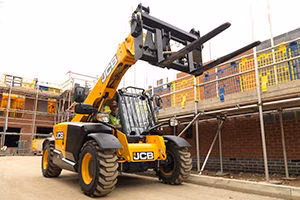

Every JCB telehandler is designed to offer superb productivity, and the 505-20TC telehandler is no different. Excellent visibility and maneuverability, versatile performance, potent power and innovation-driven efficiency are all part of the package.
Specifications
Manufacturer
JCB
Model
505-20TC
Year
2026
Category
Telehandlers
Subcategory
Telescopic Handler Compact
Emissions
DieselT4
Engine Manufacturer
Kohler
Engine Aspiration
Turbo
Engine Cooling
Water
Engine Displacement
2.5 L [153 in³]
Engine Rated Speed
2200 rpm
Torque Rated Speed
1500 rpm
Torque
300 Nm [221 lbf·ft]
Fuel Tank Capacity
75 L [20 gal]
Platform
LiveLink
ROPS Rating Standard
ISO 3471
FOPS Rating Standard
ISO 3449
Cab Position
Left
Chassis Type
Rigid
Drive
4WD
Transmission Type
Hydrostatic
Transmission Selection
Automatic
Telematics Platform
LiveLink
Gross Rating Standard
Unlisted
Gross Output
55 kW [74 hp]
Transmission Control
FNR - Joystick Controls
Steering Type
2W / 4W / Crab
Front Diff Lock
LSD [Opt]
Rear Diff Lock
Torque Proportional
Service Brakes Type
Wet Multi Disc - Inboard
Service Brakes Actuation
Hydraulic
Parking Brakes Type
Wet Multi Disc - Front Axle
Parking Brakes Actuation
Spring Applied / Hydraulic Release (SAHR)
Lift Performance General Max Capacity
2500 kg [5500 lb]
Lift Performance General Max Reach Capacity
800 kg [1750 lb]
Lift Performance - Unstabilised Max Capacity
2500 kg [5500 lb]
Lift Performance - Unstabilised Max Reach Capacity
800 kg [1750 lb]
Fork Stability Rating Standard
ANSI B56.6
Fork Max Lift Capacity
2500 kg [5500 lb]
Gears
2F - 2R
Forward Max Speed
25 km/h [15 mph]
Pump Type
Gear
Lift Performance General Max Height Capacity
1750 kg [3900 lb]
Lift Performance - Unstabilised Max Height Capacity
1750 kg [3900 lb]
Hydraulic Controls
Joystick - Servo
Hydraulic System Capacity
65 L [17 gal]
Pump Flow
80 L/min [21 gal/min]
Hydraulic System Pressure
235 bar [3408 psi]
Rear Tyre Size
12 - 16.5
Dimension Configuration
With Forks
Operating Weight
5490 kg [12100 lb]
Front Tyre Size
12 - 16.5
Length to Front Of Carriage
4000 mm [157 in]
Height Over Cab
1890 mm [74 in]
Operating Width
1840 mm [72 in]
Wheelbase
2390 mm [94 in]
Length To Front Of Tires
3380 mm [133 in]
Front Axle Centre To Front Of Carriage
1020 mm [40 in]
Ground Clearance
230 mm [9 in]
Track Gauge
1530 mm [60 in]
Cab Width
880 mm [35 in]
Lift Envelope General Max Lift Height
6000 mm [240 in]
Lift Envelope General Max Reach
3500 mm [138 in]
Carriage Rotation Angle
125 °
Lift Envelope - Unstabilised Min Boom Angle
-2.5 °
Lift Envelope - Unstabilised Max Boom Angle
67 °
Lift Envelope - Unstabilised Max Lift Height
6000 mm [240 in]
Max Capacity Lift Height
5182 mm [204 in]
Lift Envelope - Unstabilised Max Reach
3500 mm [138 in]
Reach at Max Lift
-150 mm [-6 in]
Ground Reach at Max Capacity
1372 mm [54 in]
Reach With 1000 kg
2640 mm [103 in]
Max Depth Below Ground
-121.92 mm [-4.8 in]
Turn Radius Over Tires
3700 mm [145 in]
Fork Load Centre
610 mm [24 in]
