Description

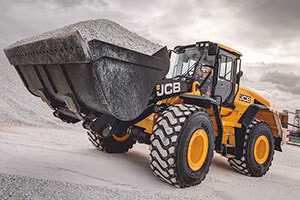

The JCB 457 gives you, epic style, visibility, power, speed, strength, efficiency and quality. Featuring a powerful new Cummins diesel engine that meets Tier 4 emission standards and new JCB CommandPlus cab provides the ultimate in operator comfort and productivity.
Specifications
Manufacturer
JCB
Model
457
Year
2026
Category
Loaders
Subcategory
Wheel Loaders
Emissions
DieselT4SV
Engine Manufacturer
Cummins
Engine Model
B Series
Number Of Cylinders
6
Cooling
Water
Displacement
6.7 L [409 in³]
Torque Rated Speed
1300 rpm
Torque
1350 Nm [996 lbf·ft]
Torque Converter
Lock Up Option
Fuel Tank Capacity
300 L [79.3 gal]
Make
JCB
Chassis Type
Articulated
Platform
Rearview Camera
EGR
Cooled Exhaust Gas Recirculation
After Treatment System
Selective Catalytic Reduction
After Treatment System 2
Diesel Particulate Filter
Aspiration
Turbo
Rated Speed
2200 rpm
Gross Rating Standard
SAE J1995
Gross Output
194 kW [260 hp]
Net Rating Standard
ISO 9249
Net Output
191 kW [256 hp]
Transmission Type
Powershift
Number Of Ranges
5F - 3R
Forward Speeds
5
Maximum Forward Speed
31.09 km/h [19.3 mph]
Forward Speed 1
5.44 km/h [3.4 mph]
Forward Speed 2
10.02 km/h [6.2 mph]
Forward Speed 3
15.21 km/h [9.5 mph]
Forward Speed 4
22.37 km/h [13.9 mph]
Forward Speed 5
31.09 km/h [19.3 mph]
Reverse Speeds
3
Maximum Reverse Speed
23.36 km/h [14.5 mph]
Reverse Speed 1
5.75 km/h [3.6 mph]
Reverse Speed 2
10.56 km/h [6.6 mph]
Reverse Speed 3
23.36 km/h [14.5 mph]
Steering Axle Type
Articulation
Traction Control
Front
Front Drive Type
Epicyclic
Front Axle Fixed / Trunnion
Fixed
Front Differential Type
Open
Rear Drive Type
Epicyclic
Rear Axle Fixed / Trunnion
Trunnion
Rear Differential Type
Open
Service Brake Type
Wet Multi Disc
Service Brake Actuation
Hydraulic
Parking Brake Type
Disc - Transmission
Parking Brake Actuation
Electro-Hydraulic
Tire Manufacturer
Michelin
Tire Type
Radial
Tread Classification
L3
Tire Model
XHA 2
Bucket Type
GP w/Edge
Loader - Geometry
Parallel
Heaped Bucket Capacity
3.5 m³ [4.6 yd³]
Smallest Bucket Capacity
3.1 m³ [4.1 yd³]
Largest Bucket Capacity
3.5 m³ [4.6 yd³]
Raise Cycle Time
5.8
Lower Cycle Time
4.1
Dump Cycle Time
1.2
Straight Tipping Load
15387 kg [33922 lb]
Full Turn Tipping Load
12919 kg [28481 lb]
Bucket Breakout Force
143 kN [32148 lbf]
Rear Axle Oscillation ±
12.5 °
Pump Type
Variable Displacement Pump
Number Of Main Pumps
2
Loader Control
Joystick
Valve Block
3
Hydraulic System Capacity
240 L [63.4 gal]
Pump Flow 1
153 L/min [40.42 gal/min]
Pump Flow 2
153 L/min [40.42 gal/min]
Cumulative Pump Flow
306 L/min [80.84 gal/min]
Load Sensing Pressure 1
220 bar [3191 psi]
Load Sensing Pressure 2
170 bar [2466 psi]
Operating Weight
20192 kg [44516 lb]
Tire Size - Standard
23.5 R25
Wheelbase
3300 mm [10ft 10in]
Length With Bucket On Ground
8508 mm [27ft 11in]
Height Over Cab
3427 mm [11ft 3in]
Ground Clearance
487 mm [19 in]
Track Gauge
2100 mm [6ft 11in]
Width Over Tires - Std
2698 mm [8ft 10in]
Bucket Width
2800 mm [9ft 2in]
Full Lift Dump Height
3030 mm [9ft 11in]
Full Lift Reach
1258 mm [4ft 2in]
Dump Angle
45 °
Maximum Dump Angle
45 °
Ground Crowd Angle
46 °
Carry Crowd Angle
52 °
Maximum Height Crowd Angle
57 °
Pivot Pin Height
4307 mm [14ft 2in]
Reach at 2130mm 45° Dump
2232 mm [7ft 4in]
Articulated Steering Angle
± 40 °
Turn Radius Over Bucket - Std
6527 mm [21ft 5in]
Turn Radius Over Tires
5883 mm [19ft 4in]
Inside Wheel Turn Radius
3183 mm [10ft 5in]
